Automatic IR Thermometer System THR 4900

Thermometer Systems

Models

Automatic IR Thermometer System THR 4900

Automatic IR Thermometer System THR 4901

High temperature alarm
Real-time control

Features

Dual infrared and visible channels
Intelligent recognition and tracking
Multi-target temperature measurement and labeling simultaneously
High temperature alarm
Video record
Multi-mode pseudocolor display
Easy to operate, unattended and reliable

Fast on-site response

FOV of IR

42° x 31.5°

Infrared detector resolution

384x288

Temperature display range

32°C - 60°C

Temperature measurement accuracy

<0.2°C

Main specifications

FOV of IR 42°x31.5°, FOV of TV 38°x28.5°
Temperature display range: 32°C-60°C
Temperature measurement accuracy: <0.2°C
Response time: <1s
Dimension and weight

Infrared sensor <148x148x85mm, weight <1.5kg

Black body <110x120x250mm, weight <2kg

Tripod: max height 3m, weight <5 kg

Environment adaptability

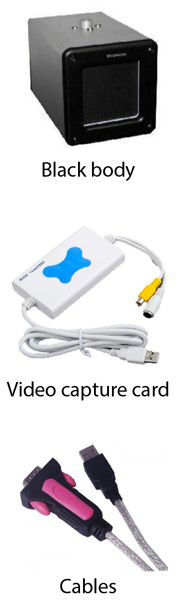

Components:

Infrared sensor (384 288) - 1pc
CCD sensor (1200 TV lines) - 1pc
PC set -1pc
Black body -1pc
Control cable, power adapter, video capture card -1pc
Support rod -2pcs
Packing box - 1pc
CD (driver, software) -1pc

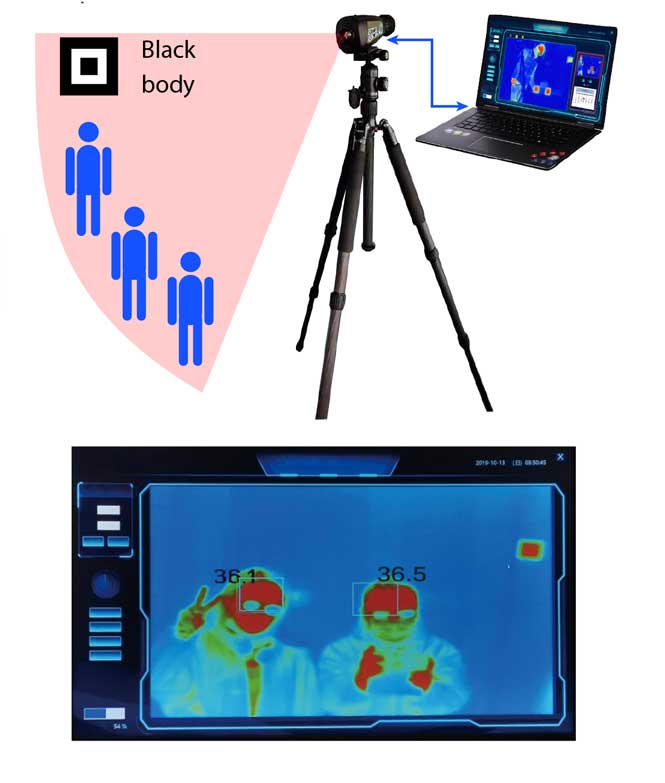

Applications

Large-scale temperature screening of schools, hospitals, stations, factories, offices, supermarkets and so on.

Climate and environment conditions

Temperature:

Working - (-10 – +45)°C

Storage or transport - (-20 – +60)°C

Relative Humidity:

Working - (20-90)%

Storage or transport - <90%
