Automatic IR Thermometer System THR 4901

Thermometer Systems



Models

Automatic IR Thermometer System THR 4900

Automatic IR Thermometer System THR 4901



  • High temperature alarm
  • Real-time control

Features

  • Dual infrared and visible channels
  • Intelligent recognition and tracking
  • Multi-target temperature measurement and labeling simultaneously
  • High temperature alarm
  • Video record
  • Multi-mode pseudocolor display
  • Easy to operate, unattended and reliable

Fast on-site response

FOV of IR

42° x 31.5°

Infrared detector resolution

384x288

Temperature display range

32°C - 60°C

Temperature measurement accuracy

<0.2°C





Main specifications

  • FOV of IR 42°x31.5°, FOV of TV 38°x28.5°
  • Temperature display range: 32°C-60°C
  • Temperature measurement accuracy: <0.2°C
  • Response time: <1s
  • Dimension and weight

                Infrared sensor <148x148x85mm, weight <1.5kg

                Black body <110x120x250mm, weight <2kg

                Tripod: max height 3m, weight <5 kg

  • Environment adaptability

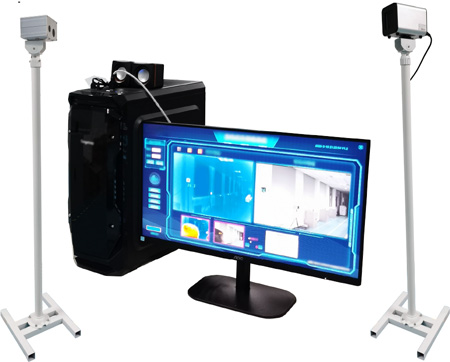

Components:

  1. Infrared sensor (384 288) - 1pc
  2. CCD sensor (1200 TV lines) - 1pc
  3. PC set -1pc
  4. Black body -1pc
  5. Control cable, power adapter, video capture card -1pc
  6. Support rod -2pcs
  7. Packing box - 1pc
  8. CD (driver, software) -1pc

Applications

Large-scale temperature screening of schools, hospitals, stations, factories, offices, supermarkets and so on.

Climate and environment conditions

Temperature:

Working -  (-10 – +45)°C

Storage or transport - (-20 – +60)°C

Relative Humidity:

Working - (20-90)%

Storage or transport - <90%
