Polarcor™ Linear Polarizers

Linear Polarizers

Polarcor™ linear polarizers offer high contrast, high transmission, low wavefront distortion and a wide acceptance angle. Polarcor polarizers outperform dichroic sheets, wire grid polarizers, and polarizing cubes at lower price than calcite polarizers for incredible value.

Models

Polarcor Linear Polarizer, 12.7 mm, 8.1 mm Clear, 79%, 630-700 nm

05P009AR.14

12.7 mm 630-700 nm Polarcor Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm 10,000:1
€ 1462

Polarcor Linear Polarizer, 12.7 mm, 8.1 mm Clear, 89%, 740-860 nm

05P109AR.16

12.7 mm 740-860 nm Polarcor Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm 10,000:1
€ 1063

Polarcor Linear Polarizer, 12.7 mm, 8.1 mm Clear, 90%, 960-1160 nm

05P309AR.16

12.7 mm 960-1160 nm Polarcor Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm 10,000:1
€ 1159

Polarcor Linear Polarizer, 12.7 mm, 8.1 mm Clear, 94%, 1500-1580 nm

05P509AR.18

12.7 mm 1500-1580 nm Polarcor Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm 10,000:1
€ 1281

Polarcor Linear Polarizer, 25.4 mm, 20.8 mm Clear, 79%, 630-700 nm

10P009AR.14

25.4 mm 630-700 nm Polarcor Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm 10,000:1
€ 1817

Out performs polarizing cube beamsplitters & dichroic sheet polarizers
Extinction ratio better than 10,000:1
Wide acceptance angle
Less expensive than calcite polarizers
Low wavefront distortion
High transmission

Features

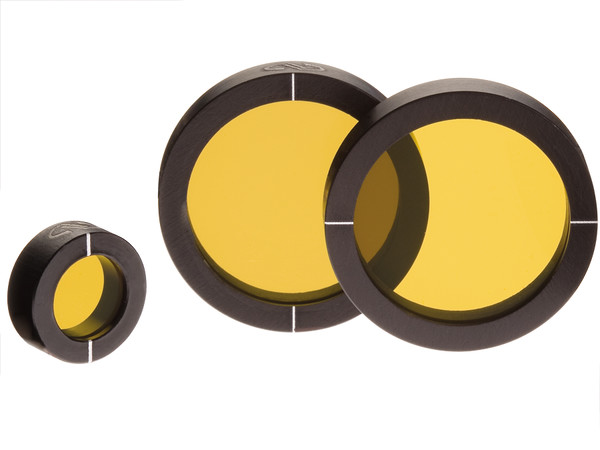

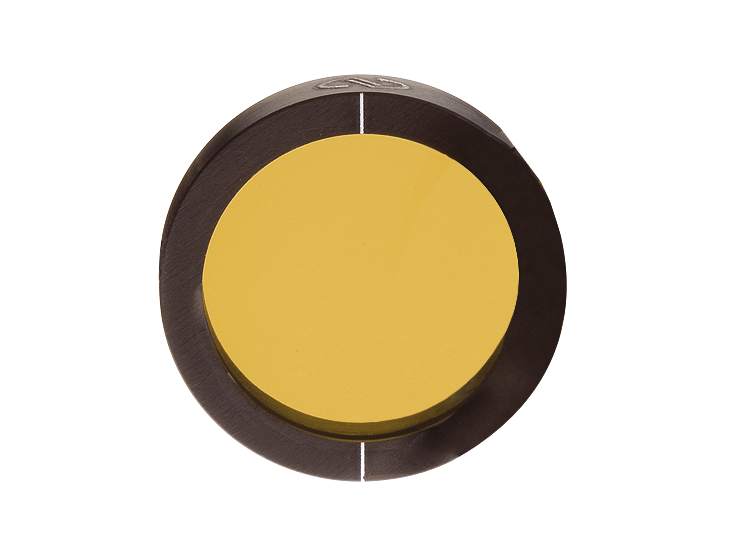

Black Anodized Aluminum Mounting Ring

Each polarizer is mounted in a 12.7 or 25.4 mm diameter black anodized aluminum ring to simplify handling of these 0.5 mm thick components.

740 to 860 nm Polarcor Polarizer Transmission

Broadband Antireflection Coatings

All Polarcor polarizers are broadband antireflection coated to increase the transmission of polarized light.

The Polarcor Advantage

Polarcor is a dichroic glass polarizer with an extinction ratio greater than 10,000:1 over a fairly broad wavelength range--greater than sheet polarizers or beamsplitter cubes. Performance characteristics such as extinction ratio, transmittance, and angular acceptance are comparable to Calcite polarizers at a much lower overall cost for great value. Compared to other simple sheet polarizers, transmission is relatively high, ranging from greater than 79% for the visible products to greater than 94% for the near infrared products.
