Laser Collimator

Collimators

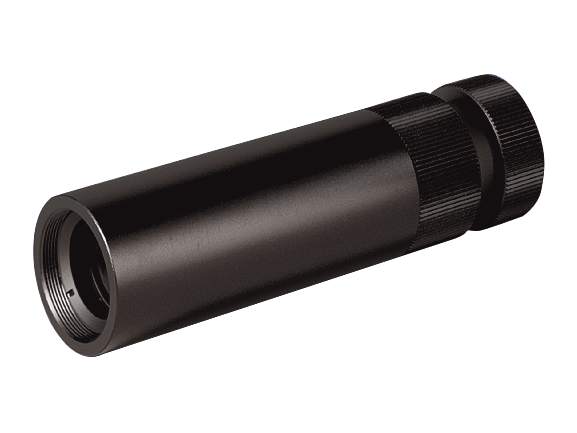

Our 10x laser collimator is optimized specifically for low wavefront distortion and diffraction limited performance at infinity focus in the visible wavelength region. The Galilean optical system is antireflection coated with visible MgF2 for maximum transmission.



Models

10X Laser Collimator, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity

LC-075
  • 10x beam expansion
  • Diffraction limited performance
  • Low wavefront distortion
  • AR coated Galilean optical system
  • Optimized for the visible spectrum

Features

Collimating a Laser Beam

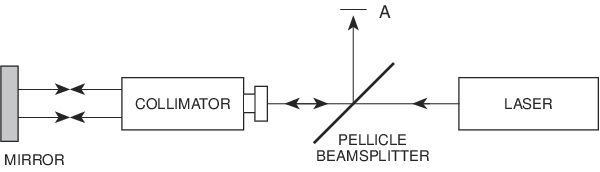

A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.













Easy Alignment

A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.



Mounting a Laser Collimator

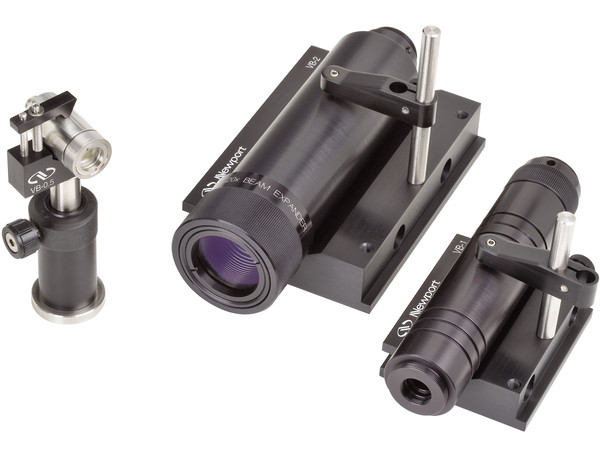

The ULM-TILT is excellent for mounting and positioning the LC-075 in any laser beam. You can also use our v-block mounts for fixed mounting to an optical table or breadboard.
