Near IR Achromatic Lenses

Achromatic Lenses

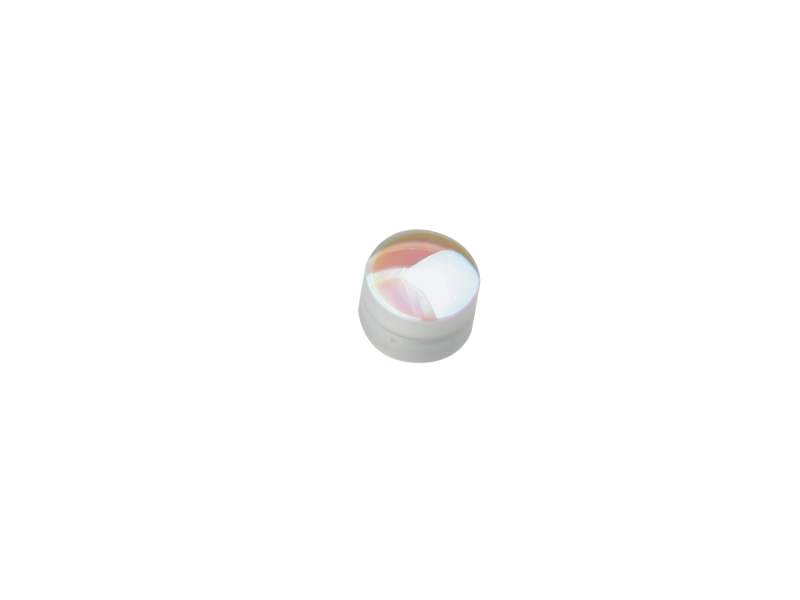

Newport's Near IR Achromatic lenses are optimized for infinite conjugates, and offer excellent broadband IR performance suitable for numerous applications including Imaging, Microscopy, and Spectroscopy.



Models

NIR Achromatic Lenses, 12.0 mm Diameter, 18.0 mm EFL, 750-1550 nm

PAC01AR.16

NIR Achromatic Lenses, 12.0 mm Diameter, 20.0 mm EFL, 750-1550 nm

PAC02AR.16

NIR Achromatic Lenses, 12.0 mm Diameter, 25.0 mm EFL, 750-1550 nm

PAC03AR.16

NIR Achromatic Lenses, 12.0 mm Diameter, 30.0 mm EFL, 750-1550 nm

PAC04AR.16

NIR Achromatic Lenses, 12.0 mm Diameter, 35.0 mm EFL, 750-1550 nm

PAC05AR.16
  • Nearly constant focal length across the near IR spectrum
  • Superior performance to singlet lenses
  • Minimize spherical aberration for monochromatic sources
  • Broadband AR Coating has < 1% Reflectivity Between 750-1550 nm
  • Computer optimized for infinite conjugate ratios
  • Near diffraction limited performacne with monochromatic light sources

Features

Design Wavelengths

Newport’s Near-IR Achromatic Lenses are computer optimized at infinite conjugate ratios for applications in the near-IR spectrum, producing the smallest spot size possible for polychromatic light sources between 750 to 1100 nm. Spherical and chromatic aberrations are minimized to provide superior performance. For most applications, diffraction-limited spot size can be achieved when using with monochromatic light sources of wavelength up to 2 µm. The NIR to IR AR coating has the following specifications: Rabs<1.5% @ 750-800 nm, Rabs<1.0% @ 800-1550 nm, and Ravg<0.7% @ 750-1550 nm. Common applications for these near IR achromatic lenses include Imaging, Microscopy, and various spectroscopic methods in the near IR spectrum.
