Broadband UV-VIS Achromatic Lenses

Achromatic Lenses

Our achromatic lenses offer near diffraction limited performance from 345-700nm, ideal for fluorescence microscopy, or Nd:YAG laser applications.

Models

Broadband Achromatic Lenses, 12.50 mm, 25.00 mm EFL, 345-700 nm

PAC10AR.15

12.5 mm,N-FK5/F2,345-700 nm,25.0 mm,40-20 scratch-dig
€ 899

Broadband Achromatic Lenses, 12.50 mm, 30.00 mm EFL, 345-700 nm

PAC11AR.15

12.5 mm,N-FK5/F2,345-700 nm,30.0 mm,40-20 scratch-dig
€ 899

Broadband Achromatic Lenses, 12.50 mm, 40.00 mm EFL, 345-700 nm

PAC12AR.15

12.5 mm,N-FK5/F2,345-700 nm,40.0 mm,40-20 scratch-dig
€ 899

Broadband Achromatic Lenses, 12.50 mm, 50.00 mm EFL, 345-700 nm

PAC13AR.15

12.5 mm,N-FK5/F2,345-700 nm,50.0 mm,40-20 scratch-dig
€ 899

Broadband Achromatic Lenses, 12.50 mm, 60.00 mm EFL, 345-700 nm

PAC14AR.15

12.5 mm,N-FK5/F2,345-700 nm,60.0 mm,40-20 scratch-dig
€ 899

Greater than 90% transmission from 345-700 nm
Ideal for fluorescence, UV light source & Nd: YAG applications
Near diffraction limited performance across UV-VIS range
Available in standard 12.5 mm or 25.0 mm diameter sizes

Features

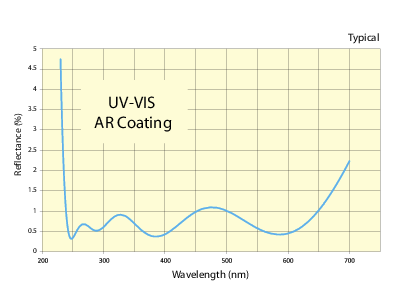

Broadband UV-Visible Antireflection Coating

Our AR.15 broadband multilayer antireflection coating markedly improves the transmission efficiency of these lenses by reducing surface reflections over a 225-675 nm wavelength range. This coating enables use with any or all of the 2nd, 3rd, and 4th harmonic Nd:YAG wavelengths, or for use in UV fluorescence imaging applications.
