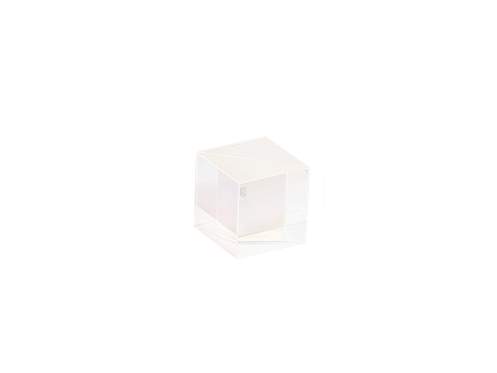

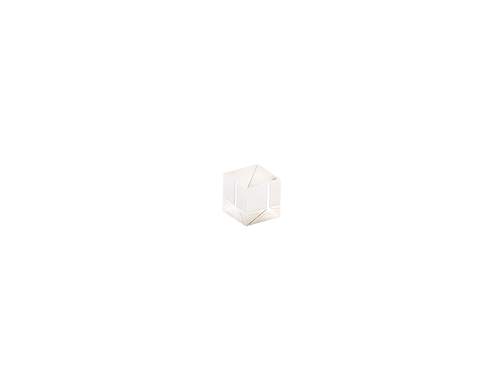

Broadband Non-Polarizing Cube Beamsplitters

Cube Beamsplitters

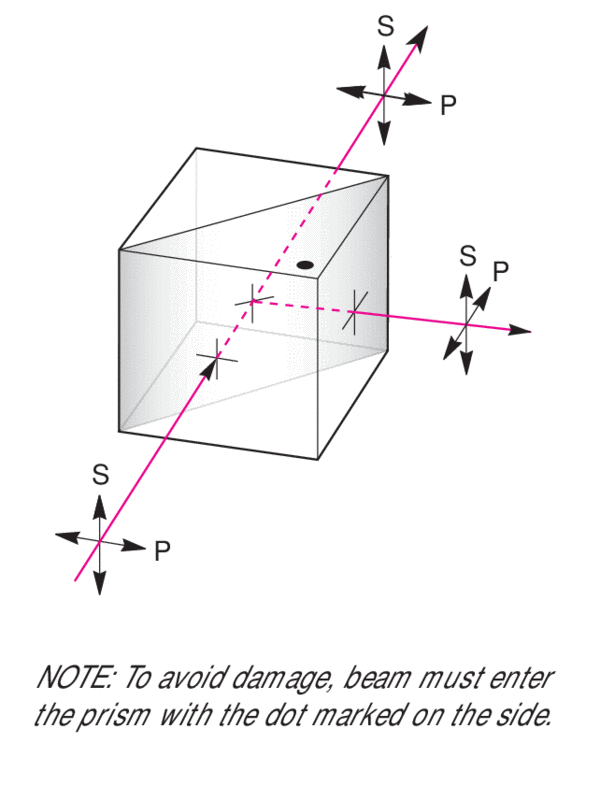

Our broadband non-polarizing hybrid cube beamsplitters are ideal for use with multiple lasers or tunable sources. Incoming beams are both transmitted and reflected 45%, with the s- and p-polarized components matched to within 10%.



Models

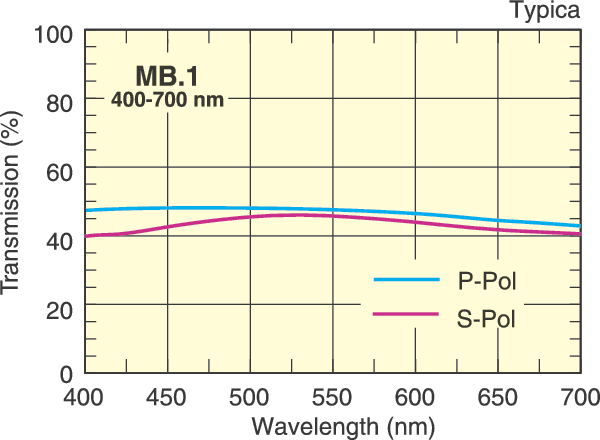

Broadband Non-Polarizing Beamsplitter Cube, 12.7 mm, 400-700 nm

05BC17MB.1

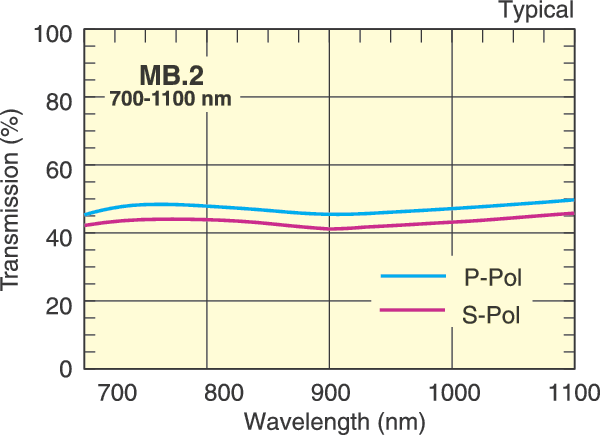

Broadband Non-Polarizing Beamsplitter Cube, 12.7 mm, 700-1100 nm

05BC17MB.2

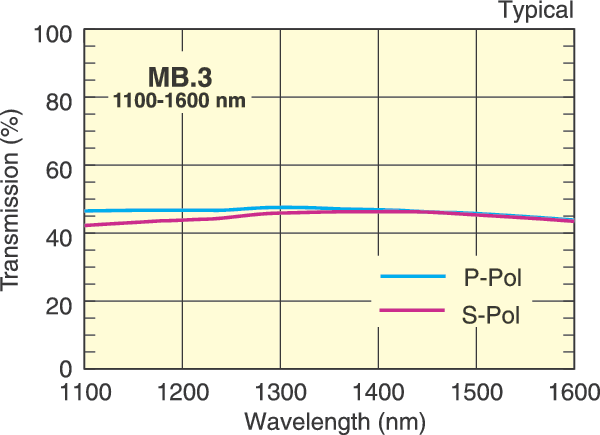

Broadband Non-Polarizing Beamsplitter Cube, 6.35 mm, 1000-1600 nm

02BC17MB.3

Broadband Non-Polarizing Beamsplitter Cube, 6.35 mm, 400-700 nm

02BC17MB.1

Broadband Non-Polarizing Beamsplitter Cube, 6.35 mm, 700-1100 nm

02BC17MB.2
  • Even power split ratio insensitive to polarization
  • Broadband and chromatically neutral
  • Flat spectral response across broad range of incidence angles
  • Metal-dielectric hybrid coatings
