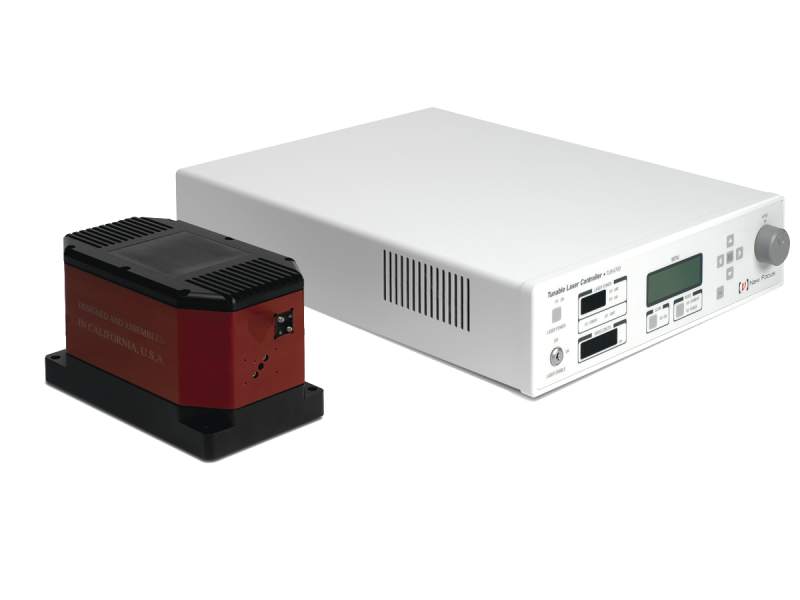

Introducing the world’s most advanced tunable diode laser system. Our TLB-6700 Velocity Widely Tunable Lasers offer very wide tuning ranges, up to 100 nm, which are guranteed to be single mode and mode-hop-free across the entire output spectrum. With very fine tuning resolutions, high stability, low noise, and narrow linewidths, they are ideal for applications such as microcavity resonators and atomic spectroscopy.
The TLB-6700 Velocity guarantees single-mode, mode-hop-free tuning across the entire specified wavelength range. You can feel confident tuning the wavelength with absolutely no mode-hops. This is not the coarse tuning range. There is no coarse tuning, just smooth mode hope free tuning. Change the wavelength, and the laser will not mode hop.
A DC motor enables smooth motorized tuning across the laser's entire wavelength range for wide scanning. When you need to make very fine adjustments, the piezoelectric transducer allows for fine tuning over 20-100 GHz with sub-picometer resolution.

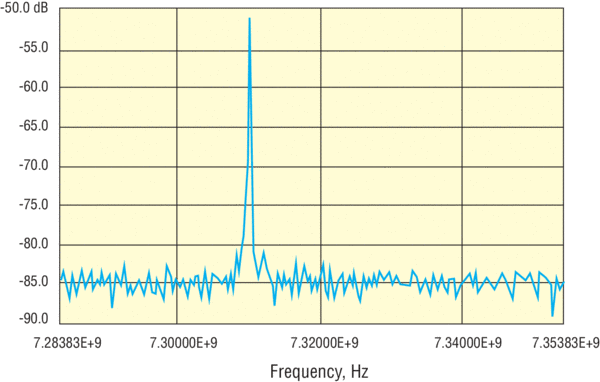

The Velocity features powerful temperature control to reduce wavelength drift and power fluctuations. We have incorporated our unique magnetic dampening to stabilize the tuning arm and reduce vibrational noise. The accompanying TLB-6700-LN Tunable Laser Controller delivers high current with very low noise. All these combined allow us to guarantee very narrow linewidths of less than 200 kHz measured over 50 milliseconds.
The fiber-coupled versions feature an integrated optical isolator and a permanently fixed and aligned steel jacketed fiber, eliminating fiber misalignment to increase efficiency and maintain power stability. Additionally, the drop-tested and shock-proof housing ensures a robust system.
The TLB-6700-LN controller comes with a USB interface for optional remote control through a computer. We include a Windows application for plug-and-play control and LabVIEW™ VIs for greater flexibility.
