Sentry Benchtop Laser Diode Reliability & Burn-In System

Laser Diode Test Systems

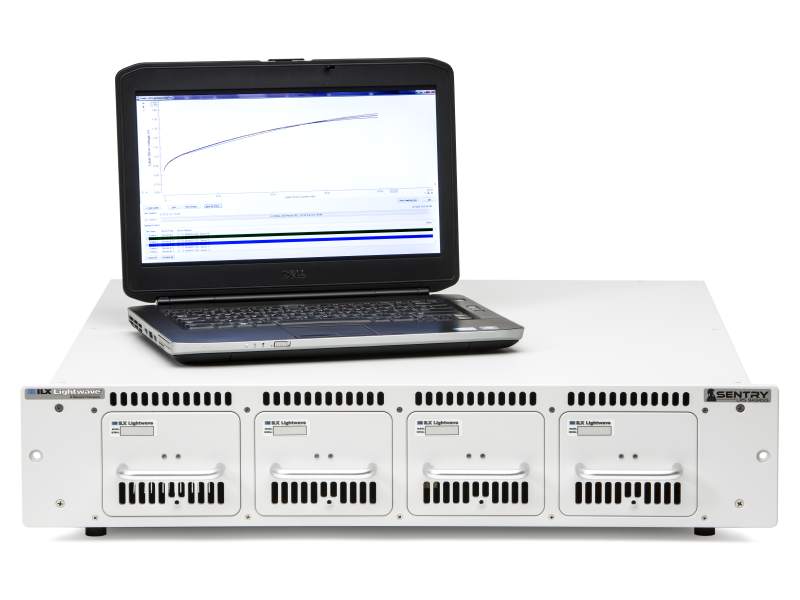

The Sentry LRS-9434SS is a fully functional laser diode testing system with all the functionality of the full rack system utilizing the latest ReliaTest supervisory software. It has a reduced channel count so it can be used on a bench top to reduce facility requirements and decrease initial cost. It can be rack-mounted into a standard LRS-9434 rack for future capacity expansion as needed.

Models

Laser Diode Test System, Sentry, Single Shelf

LRS-9434SS

• Laser Diode Test System, Sentry, Single Shelf

• Up to 128 device capacity
• Rack mountable for future expansion
• Individual fixture temperature control
• ACC, APC, and LIV Test Configuration modes

Shared Specifications

Note: Specifications below are common to all products presented. See Individual product details for complete information.

• Capacity
  128 Devices

• Maximum Current
  500 mA

• Stability
  ±0.5 mA

• Compliance Voltage
  3 V

• Diode Temperature Range
  40°C - 150C

• Diode Temperature Accuracy
  ±2°C


• Temperature Stability
  ±0.2°C

• Control Loop
  ACC, APC, LIV

• Dimensions
  6" x 26.5" x 26.5"

• Power Requirements
  100-240 VAC, 50/60 Hz, 10A

• Output Current Accuracy
  ±0.5 mA
